New Category · Fishing UAV

Long-Range Bait-Casting
Drone PB-FD01

Cover 1 km of water from the shore. Deliver bait, lines and tackle exactly where the fish are — safely, precisely, and without getting wet. GPS smart return, 8 bait memory points, 1 kg payload.

1000mControl range

1kgMax payload

8GPS bait waypoints

12m/sMax speed

PB-FD01 long-range bait casting fishing drone

Why a Fishing Drone

Fish Where Rods Can't Reach

Operate safely from dry land, reach distant reefs and holes, and protect the water ecology at the same time.

📍

8 GPS Bait Memory Points

Mark your favorite spots once — one-key auto-cruise and precise drop on every trip.

🛰️

GPS Smart Return

Auto return on low battery, signal loss or out-of-range. One-key return anytime.

🏋️

1kg Payload

Carries bait pods, hook lines or tackle — electric bait box or electric hook release included.

💪

Brushless Power

910KV brushless motors + 40A ESC + 10" props: strong wind resistance, low noise, long life.

🌙

Bright LED Lights

Identify the drone at dawn or night flights — never lose orientation.

🧳

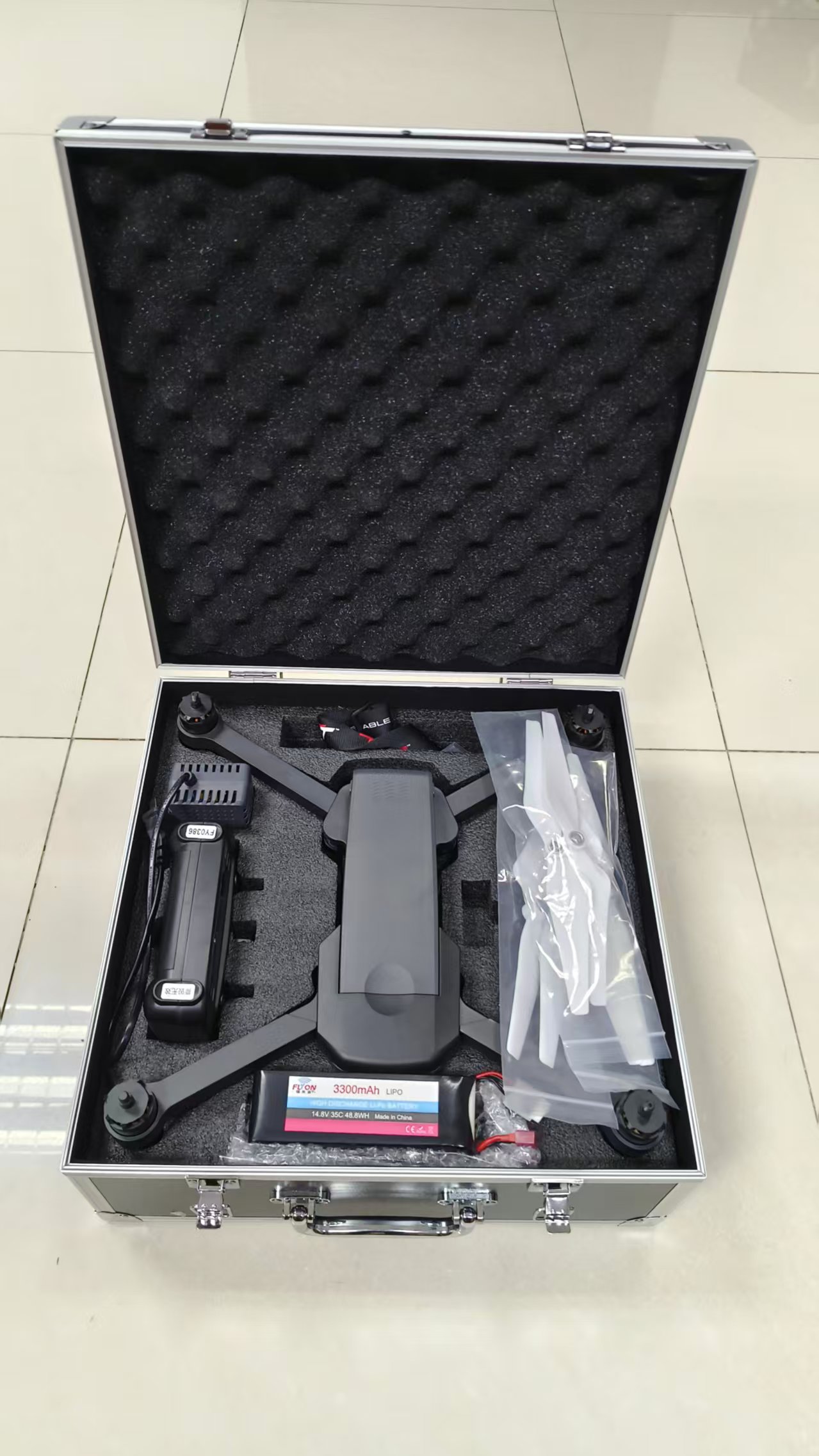

Aluminum Travel Case

Custom foam-fitted aluminum case keeps drone, battery, remote and props protected.

How It Works

Bait Casting & Hook Delivery

Two payload options included — drop chum precisely, or deliver your line and hook 1 km offshore.

Bait CastingElectric bait box — release chum exactly at the marked spot

Hook DeliveryElectric hook release — fly your line and rig far beyond casting range

Scan for the usage video (baiting · hook delivery · bait casting)

Full Specifications

PB-FD01 Technical Data

Aircraft
Model	PB-FD01 long-range bait-casting drone
Configuration	Fixed 4-rotor quadcopter, injection-molded ABS body, 10-inch removable propellers (4 arms fixed, not folding)
Wheelbase	300 mm lateral / 425 mm diagonal
Size / Weight	300 × 300 × 135 mm · 580 g (excl. battery)
Max takeoff weight	1.5 kg · max payload 1 kg
Power & Flight
Motors / ESC	910KV brushless motors · 40A ESC
Battery	3300 mAh 4S 14.8V LiPo · 45 min fast charge
Control distance	1000 m · 2.4 GHz extended communication
Flight	8–10 m/s cruise (max 12 m/s) · height limit 30 m · high/low speed switch
GPS functions	8 bait memory waypoints, auto-cruise chumming, one-key takeoff/landing, smart return (low battery / signal loss / one-key), line-tangle emergency stop
Payload options	Electric bait box or electric hook release (one included, factory fitted)
Packing
Packing	Aluminum case + protective foam + outer carton (drone, battery, remote, props, charger)

Compliance note: drone radio & airworthiness certification requirements differ by country (e.g. RCM in Australia/NZ, CE in EU, FAA Remote ID in USA). Buyers are responsible for local certification; we provide full technical documentation and previous test reports (e.g. RCM reports from our NZ customer, for reference) to support your application. OEM/ODM welcome.
